Application of MOS in Outdoor Power Supply

 Camping economy is booming in recent years, which drives the demand of outdoor power supply in China to increase. Portable energy storage power supply has become the basic product for travel. How can the product gain competitiveness in the 20 billion market? It is very important to choose high-quality MOS transistors to improve product stability.

Outdoor energy storage power supply has the characteristics of stable and reliable overall performance, simple operation, low noise and good maintenance, and is gradually becoming the mainstream outdoor power consumption solution. Product development must be supplemented by stable and good quality electronic components.

This is a problem often encountered by outdoor energy storage power manufacturers. It is very important to choose high-quality MOS transistors to improve product stability in the scene use of outdoor energy storage power MOS transistors.

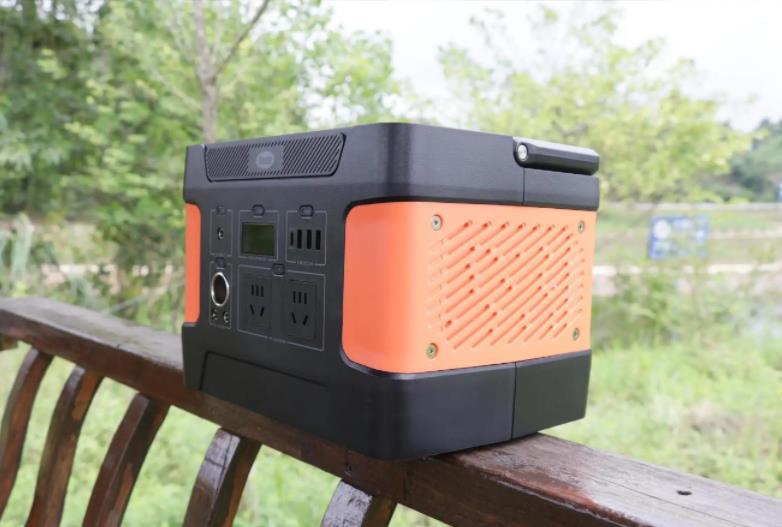

Portable energy storage power supply, outdoor power supply, also known as portable lithium ion battery energy storage (PES). The two most common uses of this kind of products are outdoor travel, earthquake resistance and disaster prevention.

Outdoor power supply adopts series-parallel combination of lithium-ion batteries as energy storage components. Nowadays, outdoor power supply not only needs to support fixed voltage DC output and 220V AC inverter output, but also fast charging has gradually become a characteristic function. Based on fast charging, outdoor power supply can not only directly supply power to laptops, mobile phones, unmanned aerial vehicles and other products, but also charge internal batteries, thus improving the practicability of products.

With the development of clean energy, solar panels have also developed rapidly. MPPT can track the highest output voltage and current of solar panel in real time according to the output volt-ampere curve and power curve of solar panel, automatically adjust the output power of solar panel, and make full use of the output capacity of solar panel to charge the maximum power of battery.

Introduction of Outdoor Main Board Scheme

Most of the outdoor energy storage power motherboard schemes are equipped with five output ports, which support AC/USB/Type-C/car charging/wireless charging output, and also have lighting lamps, which are rich in functions.

Energy storage DC 12V/24V port: UAV, vehicle-mounted products, POS machines, notebook computers, mobile hard disk boxes, projectors, electronic refrigerators, digital photo frames, portable DVDs, printers and other equipment.

12V Cigarette Lighter Port: Car Charge

USB/Type-c port: smart phone, tablet computer, smart watch, digital camera, projector, e-reader, etc.

AC port: Camping lamp, small rice cooker, small hot kettle, small desk lamp, fan, juicer and other small-power household appliances.

The cooperation scheme has South Core SC8802 with ultra-wide input and output voltage range. It can support the application range from 2.7 V to 30V, and meet the different needs of customers from 1 to 6 lithium batteries.

With the WSD4062 used in synchronous rectification with Baoliwei 5500, the efficiency can reach more than 94%.

Use with our WSD40120G or WSD40110G at C port, DC charging point and cigarette lighting port, each with 4 pipes as H bridge.

Output VBUS switch, use our WSP4447 or WSP4445.

Two WSD90P06 are used in parallel to control the power switch of the motherboard. Generally do 1000-2000W energy storage above.

Then now it is matched with SC8001 for 24V step-down 12V, which can be matched with WSD4076, and the efficiency can reach 96%

The cooperation scheme has South Core SC8802 with ultra-wide input and output voltage range. It can support the application range from 2.7 V to 30V, and meet the different needs of customers from 1 to 6 lithium batteries.

It is used with our WSF70P03 and WSF90P03 at the C port, DC charging point and cigarette lighting port, and each is matched with 4 pipes as H bridge.

Output VBUS switch, use our WSP4407 or WSP4447. Generally, it is below 700W.

Now WSF50P10 with LT chip temperature rise effect is very good.

At present, it is matched with the 2000W energy storage scheme made by customers. With 16 series batteries of lithium iron phosphate, we can use our WSD60N10GDN56 as the customer‘s step-up and step-down control, and then use WSD50P10DN56 as the anti-reverse connection scheme. The current scheme of synchronous bidirectional inverter can realize charging and discharging at the same time.

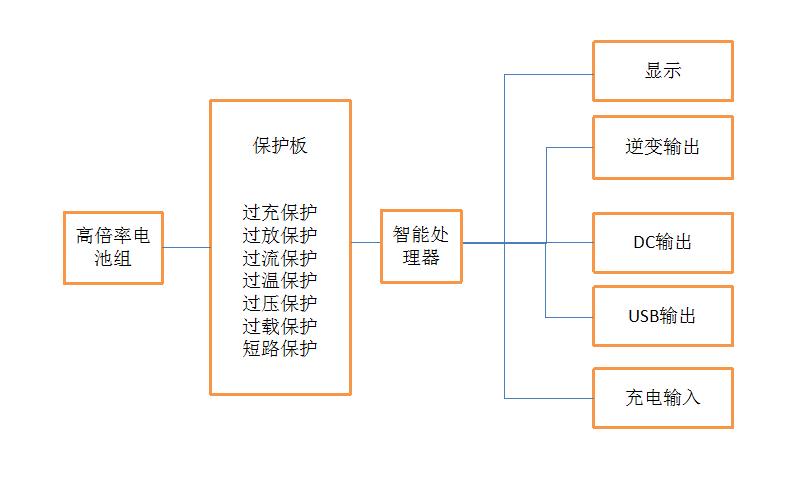

System framework

DFNPackaging series
Model	Encapsulation	Channel	Voltage	Current	Internal resistance	Junction capacitance
WSD30100DN56	DFN5X6-8	N	30V	100A	3.3mΩ	1350PF
WSD4062DN56	DFN5X6-8	N	40V	62A	7mΩ	1150PF
WSD4076DN56	DFN5X6-8	N	40V	76A	6.9	680PF
WSD40110DN56G	DFN5X6-8	N	40V	110A	2.5mΩ	2810PF
WSD40120DN56G	DFN5X6-8	N	40V	120A	1.8mΩ	3972PF
WSD100N06DN56	DFN5X6-8	N	60V	36A	14mΩ	3458PF
WSD75100DN56	DFN5X6-8	N	75V	100A	5.3mΩ	3500PF
WSD80120DN56	DFN5X6-8	N	85V	120A	3.7mΩ	3750PF
WSD30L90DN56	DFN5X6-8	P	-30V	-90A	5.2mΩ	3200PF
WSD30L120ADN56	DFN5X6-8	P	-30V	-120A	2.9mΩ	6100PF
WSD90P06DN56	DFN5X6-8	P	-60V	-90A	10.5mΩ	5600PF
WSD50P10	DFN5X6-8	P	-100V	-34A	32mΩ	2480PF
WSD30L40	DFN3X3-8	P	-30V	-40A	11mΩ	1380PF

SOPPackaging series
型号	封装	沟道	电压	电流	内阻
WSP4447	SOP-8	P	-40V	-11A	13mΩ
WSP4445	SOP-8	P	-40V	-16.7A	7.9mΩ
WSP4068	SOP-8	N	40V	10A	13.5mΩ

TO-252Packaging series
型号	封装	沟道	电压	电流	内阻
WSF70P03	SOP-8	P	-30V	-65A	9.5mΩ
WSF90P03	SOP-8	P	-30V	-85A	5mΩ
WSF45P10	SOP-8	N	-100V	-40A	44mΩ

TO-263Packaging series
型号	封装	沟道	电压	电流	内阻
WSK140N08	TO-263	N	40V	180A	4.8mΩ
WSK220N04	TO-263	N	60V	220A	2.5mΩ
WSK200N08A	TO-263	N	80V	200A	3mΩ

TO-220Packaging series
型号	封装	沟道	电压	电流	内阻
WSR130N06	TO-220	N	60V	130A	3mΩ
WSR140N08	TO-220	N	80V	140A	4.8mΩ
WSR150N04	TO-220	N	40V	150A	3mΩ
WSR170N04	TO-220	N	40V	170A	1.9mΩ

TOLLPackaging series
型号	封装	沟道	电压	电流	内阻
WSM180N15	TOLL-8L	N	150V	180A	6.2mΩ
